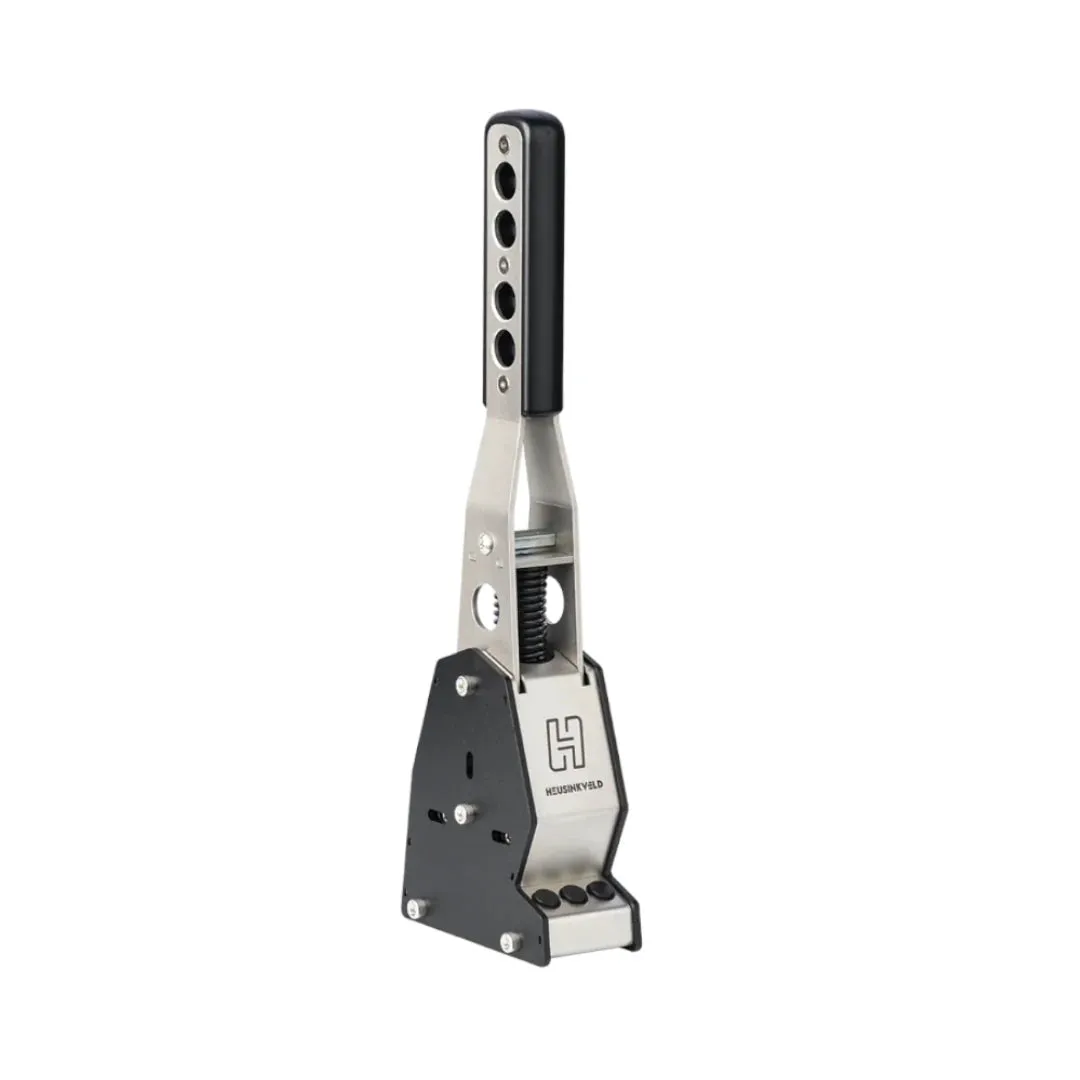

Heusinkveld MagShift Sequential Shifter
The most versatile sim racing sequential shifter on the market. Patented magnetic shift system, individually adjustable upshift, downshift and overall force. High forces (up to 11kg at the lever) from a compact design, reliable shift detection with opto-electronic sensors. Configure up to 10 fully customizable outputs using the gear lever and the 3 extra buttons with SmartControl.
Feel the gears click into place with the innovative magnetic shift system.
MagShift is the perfect sequential shifter for rally cars, GT’s, touring cars and classic racing. Upgrade your simulator with the most versatile shifter available, packed with extra features.
SmartControl
With Heusinkveld SmartControl you have the option to expand the outputs of the lever and the 3 extra buttons to a total of 10 fully customizable outputs. You can configure and customize the outputs using the easy-to-use editor in SmartControl.
For every single input you can configure a primary and secondary output. An output can be a selectable joystick button or any keyboard keystroke (including modifier keys such as Shift, Ctrl, Alt etcetera).
The primary and secondary output can be triggered simultaneously, delayed or independently. The functions are time-bound. How long you press a button or push/pull the lever determines whether the primary, secondary or both outputs are triggered.
You may want to use different settings depending on the car of software you drive. You can store different settings into a profile and change them with a few mouse clicks.
Shared profiles with other SmartControl compatible products
If you have other Heusinkveld products which use SmartControl, it is possible to create a single profile which includes multiple SmartControl compatible Heusinkveld devices. This allows you to change MagShift, Handbrake and pedal settings all at once.
SmartControl Live
SmartControl Live is software which is designed to run in the background while using your simulator. It allows you to switch between profiles created using SmartControl while driving. With MagShift, a possible use case would be to change the direction of up- and downshifts and the touch of a button.
If you want to learn more about SmartControl & SmartControl Live, make sure to check out the .
Mounting

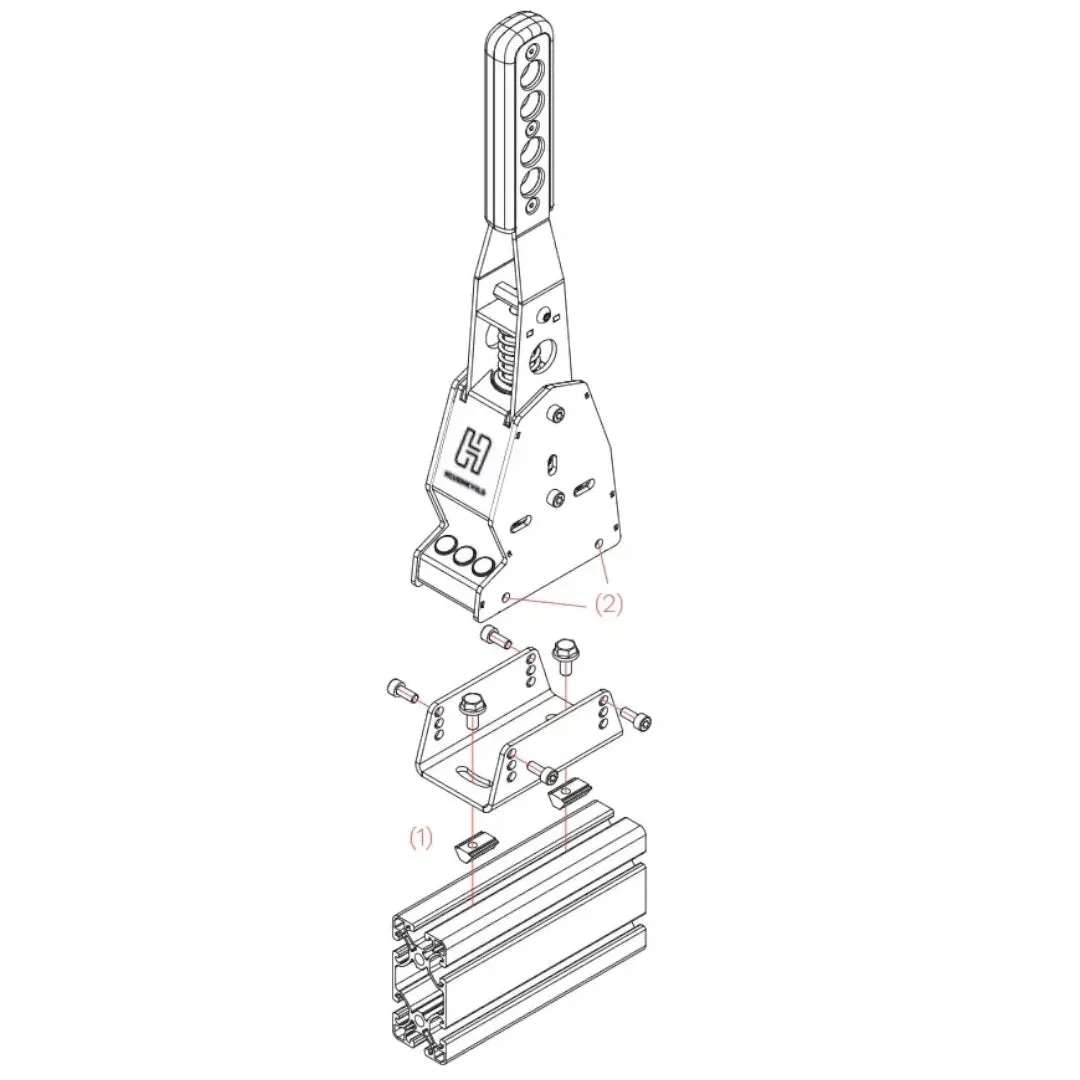

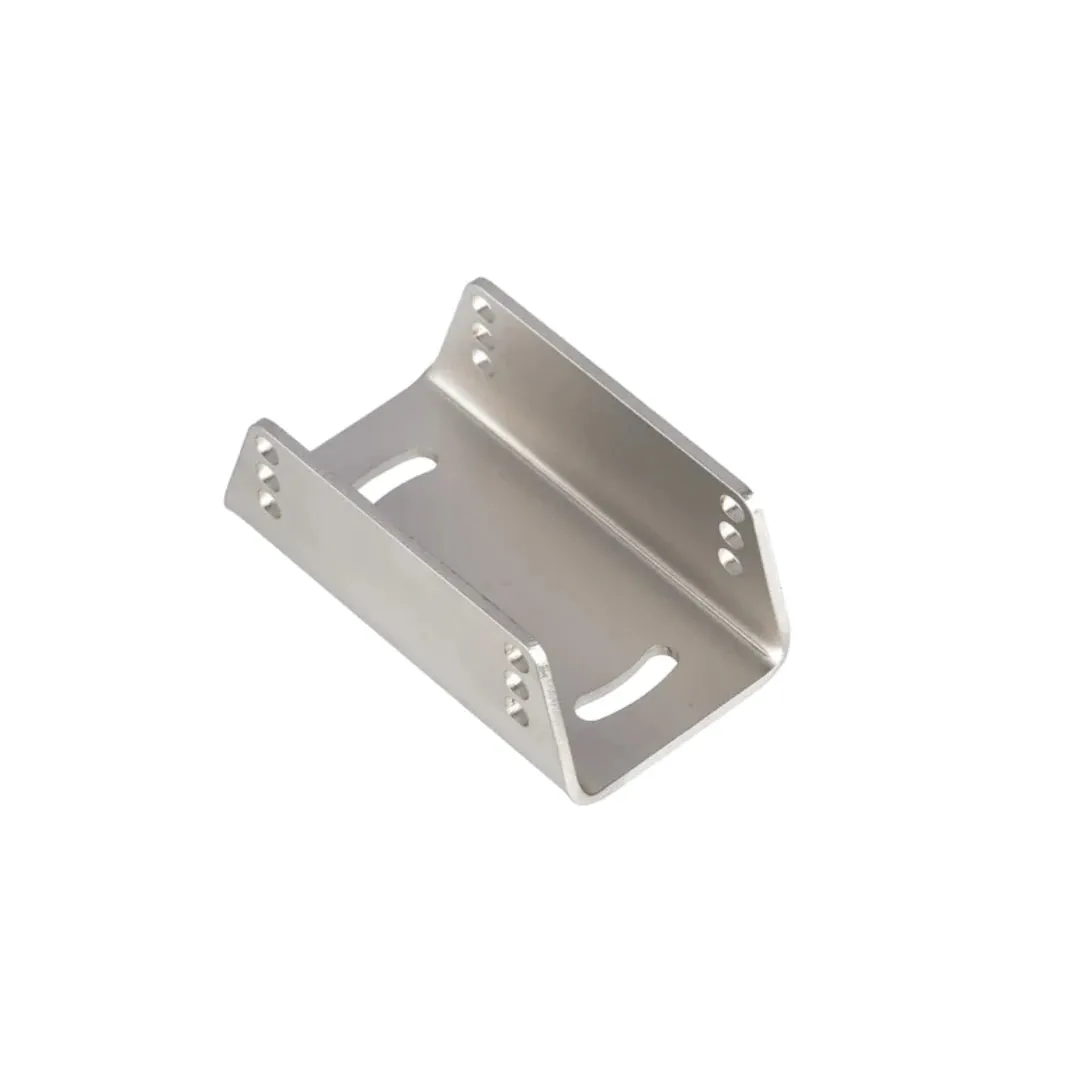

Every MagShift comes with a U-shaped mounting bracket which makes mounting the shifter to your simulator super easy.
The U-brackets mounts to your simulator with just 2 bolts, ensuring a narrow profile of the overall installation. The MagShift is then attached to the bracket.
When mounted onto aluminium profiles, the MagShift only requires a single profile slot for mounting.
Mounting adjustments & dimensions
The mounting bracket allows for several adjustments to fine-tune the position of your MagShift.
- Yaw adjustment: by rotating the U-bracket relative to the mounting platform.
- Height adjustment: by choosing any of the 3 horizontal rows of mounting holes in the U-bracket.
- Tilt adjustment: by choosing any diagonal combination of the mounting holes in the U-bracket.
The height of the MagShift (from the bottom of the mounting bracket to the top of the lever) is as follows.
- 36,2 cm (14,25 in) when installed in the lowest position.
- 37,7 cm (14,84 in) when installed in the highest position.
The full mounting dimensions for MagShift can be seen (all dimensions in mm).
Mounting materials
Mounting materials are supplied in order to attach the MagShift to most common simulator platforms. A selection of bolts (2 lenghts) and nuts (flange nuts and guided I-type slot 8 T-nuts) are included in the package. This makes installing the MagShift, especially onto aluminium profiles, super easy.
